[Video] Navigating Your Kaiterra Web App

This video will help you navigate through the Kaiterra Web App and covers all of our features so you can make the best use of our powerful Web App experience.

Web App Buildings
Once you are logged in, you can navigate to your "Buildings and Spaces" page, which is where you can see all of your buildings and their current statuses (including device count and average readings for the various pollutants being measured).

Web App DevicesClicking on a building will take you to the building's homepage.

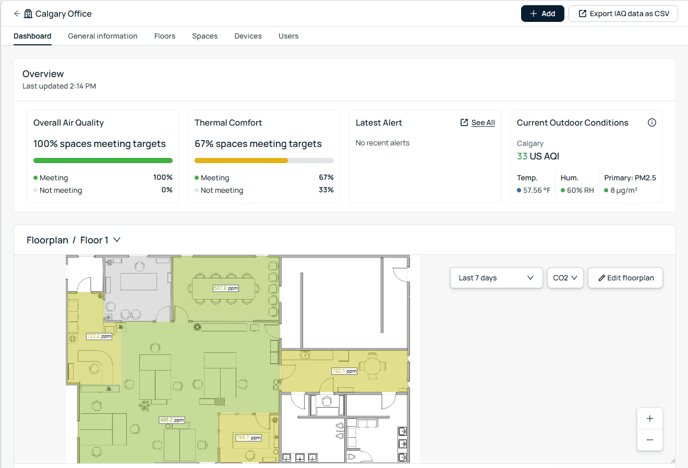

Dashboard Home PageThis page shows an aggregate summary of the IAQ throughout the building, as well as a breakdown of other aggregate data -- such as "Air Quality by Floor" and "Air Quality by Space".

If you do not see any information on this page, it may be that your devices are missing potential metadata (such as "which floor is the device on?" or "what type of space is the device installed in?"). Once you fill out this information for your devices, these reports will start to populate.



Organization PageOrganization Accounts can organize their devices into different buildings, making it easier to keep track of your various offices or buildings around the world.

Add Member
You can also invite members to different buildings that are relevant to them, allowing you to skip the need for each member to add their own devices individually.


device name-1
To view more Device Details of a specific device, click on the device's name.

Device Details Example
From this page, you can view the device's information and current pollutant readings along the top and the historical data readings along the bottom.

The bottom icons that represent the different pollutants can be clicked on to view their specific historical data readings - and you can click on two of these pollutants to try and spot trends in the readings, such as high Humidity and PM readings indicating a humidifier might have turned on.

Edit DeviceTime Duration

You can use the "More Options" button in the top-right to name - or rename - your device.






You can also click on the duration above the graph to change the time period in which you are viewing your historical data.


The bottom "More Options" button (above the graph) will allow you to export the data currently being displayed on the graph.

Data Download
You can choose between raw data ("no averages" aka. minute-by-minute readings), hourly averages, or daily averages. This information will then be compiled into a CSV file and sent to your email.



Compare
Compare is a feature that allows you to compare the readings of up to 8 devices at once! It is a great way to get an in-depth understanding of the varying readings throughout your space. These comparisons can also be saved so you can revisit them whenever needed.

Select Devices
To create a comparison, click "Create Comparison" and select up to 8 devices. If you are using an Organization Account, you can create these comparisons with any of your devices from any building - in case you want to compare the air quality in your New York offices vs your Switzerland Headquarters.



Kiosk View v4
Kiosk View
is a great way to display up to 8 devices at once on a larger screen - such as a Smart TV or monitor - in order to showcase how good your air quality is to a larger audience.

Kiosk View Directions
Follow the on-screen instructions to create your Kiosk View.
Mode allows you to select between "Air quality mode", which focuses on the overall health of your air, and "Virus risk mode", which focuses on viral transmission risk awareness.
Layout lets you choose between a single device display, multiple device display, or an indoor/outdoor comparison display.
Theme allows you to choose between Light mode and Dark mode.

Once you have selected all of your customizations, click on "Create" to generate your Kiosk View. From there, you can copy the URL into a web browser on your Smart TV or monitor to start displaying your Kiosk View data to the masses!

Kiosk View 2



Alerts
Alerts allow you to create threshold-based notifications for when a device goes above (or below) a specified level -- such as "CO2 staying above 2000ppm for more than 30 minutes".

Alerts can also be set to notify you when a device has dropped offline, giving you an effective way to monitor and investigate the online connectivity of your devices.

Alerts 2

CO2 Dashboard Alert
Alerts can be set for an entire building and you can either use email notifications (as seen above) or use the Alert Feed (as seen below) to keep tabs on when and where your alerts were triggered.

Alerts 3


The Kaiterra Web App was designed with the user in mind - so if you have any questions, comments, or feedback, feel free to get in touch so we can continue to improve the Kaiterra experience for you!
