[Video] Navigating Your Kaiterra Dashboard

This video will help you navigate through the Kaiterra Dashboard and covers all of our features so you can make the best use of our powerful dashboard experience.

Navigating Your Kaiterra Dashboard

Timestamps:

0:00 - Introduction
0:30 -
Register an Account + Dashboard Overview
1:07 -
"Cards" View and "Table" View
1:30 -
Organization Accounts
2:15 -
Device Details (naming your device, historical data, and data export)
3:10 -
Dashboard Feature: Compare
3:45 -
Dashboard Feature: Kiosk View
4:25 -
Dashboard Feature: Alerts


Below is a text version of the video above! This is for those that prefer a laid-out text walkthrough or would like some clarity on some of the points made throughout the video.

dashboard URL
Before you can access the Kaiterra Dashboard, you need to have a dashboard account! Head on over to https://dashboard.kaiterra.com and register for a free account.

Dashboard Page
Once registered and logged in, you will arrive at your Dashboard Devices page, which is where you can see all of your devices and their Overall Index air quality readings. If you do not have any devices added yet, you can click "Add Device" in the top right corner and use your device's Unique Identifier - or UDID - to add it to your dashboard.



Your devices page has two display modes:

Cards View 4-1
"Cards" View allows you to view all of your devices as individual cards - where you can click on each card to view its pollutant readings.

Table View 5-1
Table View allows you to view all of your devices in a table format - where you can see all of your device's pollutant readings and even organize them by the highest or lowest readings available.



Organization AccountsOrganization Accounts have the ability to organize their devices into different projects, making it easier to keep track of your various offices or ongoing projects around the world.

Invite Member
You can also invite members to different projects that are relevant to them, allowing you to skip the need for each member to add their own devices individually.

If you are an organization that would like to upgrade your account - get in touch with us!

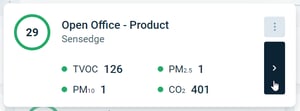

Blue Arrow icon-1
To view more Device Details, click on the blue arrow icon after selecting the device.

Device Details

From this page, you can view the device's information and current pollutant readings along the top and the historical data readings along the bottom.

The bottom icons that represent the different pollutants can be clicked on to view their specific historical data readings - and you can click on two of these pollutants to try and spot trends in the readings, such as high Humidity and PM readings indicating a humidifier might have turned on.

Rename DeviceTime Duration

You can use the "More Options" button in the top-right to name - or rename - your device.






You can also click on the duration above the graph to change the time period in which you are viewing your historical data.


Export Data
will allow you to download the data currently being displayed on the graph.

Export Data
You can choose between raw data ("no averages" aka. minute-by-minute readings), hourly averages, or daily averages. This information will then be compiled into a CSV file and sent to your email.



Compare
Compare is a feature that allows you to compare the readings of up to 8 devices at once! It is a great way to get an in-depth understanding of the varying readings throughout your space. These comparisons can also be saved so you can revisit them whenever needed.

Create new comparison
To create a comparison, click "Create Comparison" and select up to 8 devices. If you are using an Organization Account, you can create these comparisons with any of your devices from any project - in case you want to compare the air quality in your New York offices vs your Switzerland Headquarters.



Kiosk View
Kiosk View
is a great way to display up to 8 devices at once on a larger screen - such as a Smart TV or monitor - in order to showcase how good your air quality is to a larger audience.

Generate Kiosk View-1
Select up to 8 of your Indoor Air Quality Monitors.
You can also select an outdoor monitor or a public station in your area to compare your data to.

Information Density

Information Density will allow you to display all of your indoor devices separately or to combine your devices together to create an average - or merged - value.





Click on "Generate Link" to create your Kiosk View.

Kiosk View Link
Copy this URL into a web browser on your Smart TV or monitor to start displaying your Kiosk View data to the masses!
Kiosk View Full



Alerts
Alerts will allow you to create thresholds for when a device goes past a certain pollutant level.

For now, these alerts can be set for Overall Index thresholds. We will be adding more flexible and customizable alerts soon, so stay tuned!

Alert Bedroom



Choose the device you want to set an alert for.





Set Alert Threshold



Then select the Overall Index threshold.





Alert Notification
Whenever the device surpasses your alert threshold, a notification will appear at the bottom of your Alerts screen.


The Kaiterra Dashboard was designed with the user in mind - so if you have any questions, comments, or feedback, feel free to get in touch so we can continue to improve the Kaiterra experience for you!
