How to use the Floorplan Visualizer

Kaiterra's Floorplan Visualizer is designed to help you quickly identify, diagnose, and resolve air quality issues by providing an intuitive, real-time view of your IAQ data across both space and time. This article will show you how to use it.

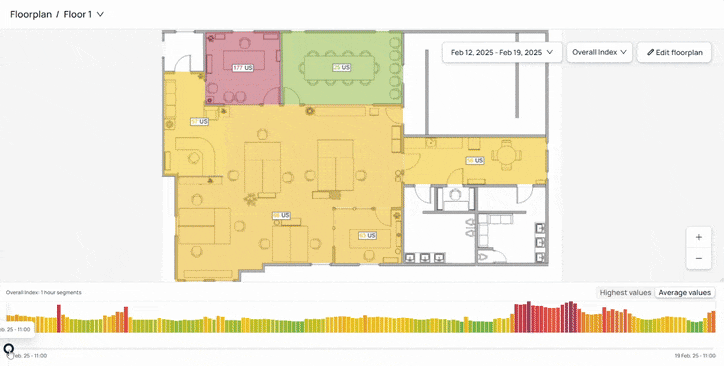

Floorplan VisualizerThe Floorplan Visualizer is designed to help you quickly identify, diagnose, and resolve air quality issues by providing an intuitive, real-time view of your IAQ data across both space and time.

By mapping your devices to a floor plan of your building, you can easily visualize the air quality throughout the space and pinpoint problem areas at specific times of the day.

Before You Begin

Before using the Floorplan Visualizer, ensure your building is properly mapped out, which includes:

  • Creating spaces for your devices
    (e.g., "Conference Room A," "Fitness Room," "Reception")
  • Assigning your devices to those spaces

Without this setup, you won’t be able to map your devices to the floor plan.

For more details, see our guide: How to Set Up your Building Data Model

Uploading Your Floor Plan

  • Navigate to the Buildings tab and select your building to open its homepage.
  • Find the Floorplan section, which is under the Overview section.
  • Select the correct floor and upload a JPG or PNG file of your floor plan.

Calgary Office Floor Plan

Mapping Your Spaces

  • Click Edit Floorplan on the right-hand side.
  • Click Draw Space on the left-hand side.
  • Click and drag over the area you want to map.

Map spaces (gif)

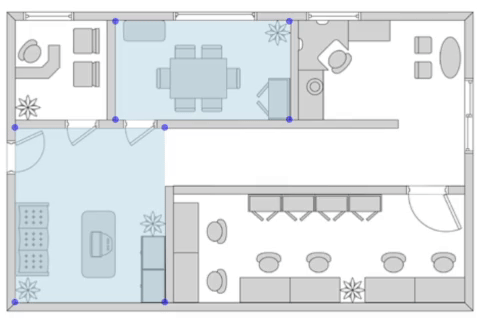

Tip: If your space isn’t a perfect square, you can adjust the shape by clicking on the edges to add new anchor points. Then, drag those anchors to reshape the area.

Anchor points (gif)


Using the Floorplan Visualizer

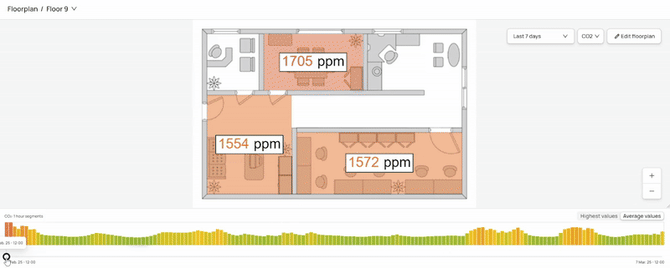

Once all your spaces are mapped, you can use the timeline at the bottom of the Floorplan Visualizer to track the air quality changes over time.

Final Results (CO2) Gif

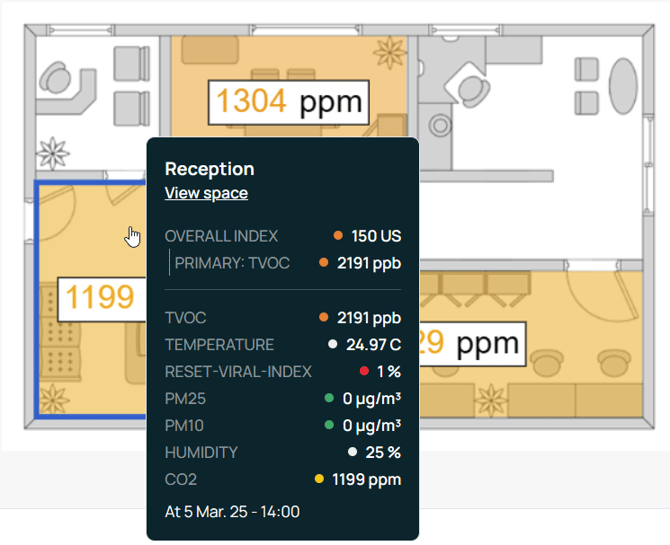

You can also click on the space to view detailed IAQ readings for that area.

Floorplan readings


The Floorplan Visualizer helps you monitor your space’s air quality performance, making it easy to spot trends, identify problem areas, and take action.

If you have any questions or feedback, feel free to reach out to us!
